5.56 NATO vs .223 Remington vs .300 Blackout — What's the Real Difference?
Same-looking case, vastly different behavior. Shoot 5.56 NATO in a .223 chamber and you risk damaging your rifle. Shoot .300 Blackout in a 5.56 upper and you risk catastrophic failure. Here's what every AR-15 owner needs to know.
Walk into any gun store and ask for "5.56 ammo" and the clerk will hand you a box of any of these three: 5.56 NATO, .223 Remington, or .300 Blackout. They all look similar. They all fit an AR-15 magazine. They all seem interchangeable. They are not.
This guide explains the technical and practical differences between the three most-confused AR-15 cartridges, why mixing them up can be dangerous, and which one fits your specific use case — home defense, hunting, subsonic suppressor work, or long-range shooting.
The 30-second answer
5.56 NATO vs .223 Remington — the dangerous mix-up
This is the one that gets people hurt. To the untrained eye, 5.56 and .223 are identical — same case dimensions, same bullet diameter, same weight options. The case is even physically interchangeable in either chamber.
The difference is chamber pressure and chamber dimensions:
- 5.56 NATO chamber has longer leade (the space between the case mouth and the rifling) to handle higher pressures.
- .223 Remington chamber has shorter leade and tighter dimensions, designed for civilian SAAMI-spec ammo.
The rules:
- ✅ You CAN safely shoot .223 Remington in a 5.56 NATO chamber. The looser leade absorbs the lower pressure ammo without issue.
- ⚠️ You should NOT shoot 5.56 NATO in a .223 Remington chamber. The higher pressure plus tight leade creates pressure spikes that can damage the rifle or cause case rupture.
How to know what chamber you have: Look at the barrel near the chamber. It will be stamped 5.56 NATO, .223 REM, or .223 WYLDE. If it says "5.56" or "5.56 NATO" you can shoot either. If it says ".223 Rem" only, stick to .223 Remington ammo.
The .223 Wylde chamber is a hybrid that safely accepts both — it's what you see on most premium AR-15s from BCM, LaRue, Daniel Defense, and Ruger.
.300 Blackout — a completely different cartridge
Here's where things get more dangerous. .300 Blackout looks similar to 5.56/.223 because it uses a modified .223 case necked up to accept a .30 caliber bullet. It will fit in a standard AR-15 magazine. It will chamber in a 5.56 upper.
And if you pull the trigger — you blow up your rifle.
The .300 Blackout bullet is too large to safely pass through the 5.56 bore. The pressure spike from forcing a .30 caliber bullet through a .224 hole is enormous. The result is called a "kaboom" — the upper receiver explodes, the bolt carrier separates, and shrapnel goes everywhere. People lose fingers and eyes from this.
If you own both 5.56 and .300 Blackout uppers: Color-code your magazines. Use dedicated magazines for each caliber and never mix them. Many shooters use blue tape on 5.56 mags and red on .300 BLK mags. A momentary mix-up at the range can ruin your rifle and injure you.
Use cases — what to buy for what
5.56 NATO — the all-rounder
If you have a standard AR-15 with a 5.56 NATO or .223 Wylde chamber, 5.56 is your default choice. Military-spec pressure means flatter trajectory, more energy on target, and better long-range performance. Most defensive ammunition (M193, M855A1, MK318) is loaded to 5.56 specs.
Buy 5.56 if: Range training, home defense, general purpose AR-15 use.
Top picks: Federal American Eagle 55gr FMJ (training), Hornady 75gr TAP (defense), Black Hills 77gr OTM (precision).
.223 Remington — the precision and hunting choice
SAAMI-spec .223 is loaded with lighter recoil and tighter pressure tolerances. It's the better choice for varmint hunting, precision target work, and shooters with .223-only chambers (bolt action rifles, AR-15s with .223 chambers).
Buy .223 if: Coyote/varmint hunting, bolt-action precision work, you specifically have a .223-only chamber.
Top picks: Hornady V-MAX 55gr (varmint), Sierra Match King 77gr (precision), Federal Fusion 62gr (deer-legal in some states).
.300 Blackout — the specialty round
.300 BLK was designed for one specific job: suppressed short-barreled rifles. It uses a heavier .30 caliber bullet that achieves full velocity from a 9-inch barrel — something 5.56 cannot do. Subsonic .300 BLK (190+ grain bullets at 1,050 fps) is whisper-quiet through a suppressor.
Downsides: Slower trajectory than 5.56, more recoil, ammo is 2-3x more expensive, and you need a dedicated upper receiver.
Buy .300 BLK if: You're building a suppressor host, you want a short barrel without sacrificing energy, or you're hunting hogs at close range.
Top picks: Federal Power Shok 150gr (supersonic hunting), Hornady Subsonic 190gr Sub-X (suppressor), Barnes TAC-TX 110gr (defense).

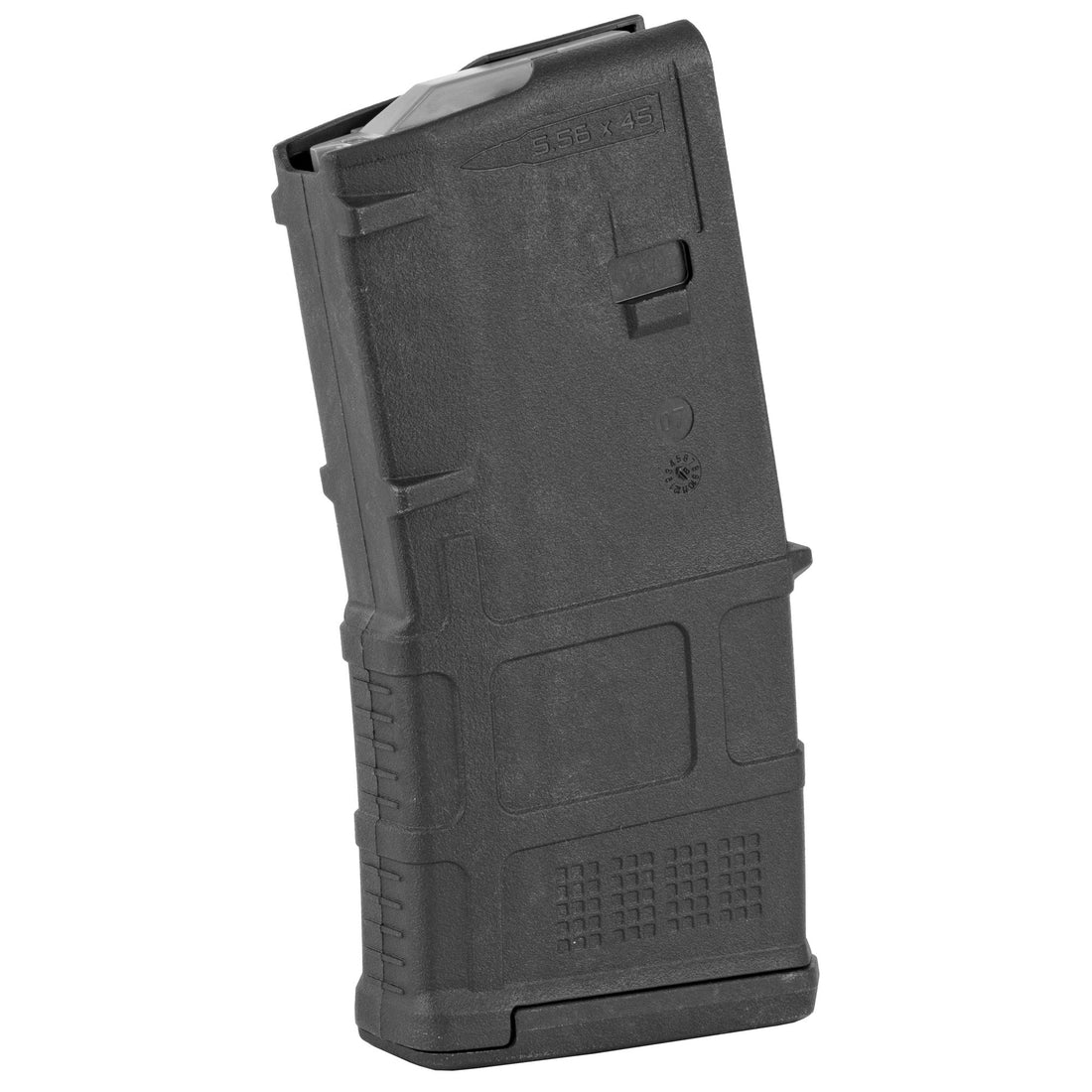

Magazine compatibility
All three cartridges fit standard AR-15 magazines (PMAG, HEXMAG, Lancer, etc.). The case dimensions are similar enough that the magazine doesn't care. The magazine cannot tell which caliber it's feeding. This is why mixing up magazines is so dangerous — the rifle and the magazine won't catch your error.
For shooters with multiple uppers in different calibers: buy dedicated magazines, color-code them, and store them separately.
Stock up at TakTactical
FAQ
Will 5.56 NATO fire safely in my AR-15?
Check your barrel stamp. If it says "5.56 NATO" or ".223 Wylde" — yes, both are safe. If it says ".223 Rem" only — stick to .223 ammo. Most factory AR-15s ship with 5.56 or Wylde chambers.
Is .300 Blackout more powerful than 5.56?
Different, not more powerful. .300 BLK delivers more energy in short barrels (9-10") and at close range. 5.56 has flatter trajectory and more energy at distance. They serve different jobs.
What barrel length do I need for each?
5.56: 14.5-20" optimal (10.5" SBR works but loses 200-300 fps). .223: same as 5.56. .300 BLK: 8-12" optimal (achieves full velocity in short barrels).
Can I convert my AR-15 to .300 Blackout?
Yes — you need a dedicated .300 BLK upper receiver. The bolt carrier group is the same as 5.56. The lower receiver and magazines work for both. Just NEVER mix up magazines.
The bottom line
For most AR-15 owners, 5.56 NATO is the right choice — it's affordable, widely available, and works in any 5.56 or Wylde-chambered rifle. Save .223 for precision work or hunting. Save .300 Blackout for suppressed short-barrel builds.
And whatever you do: never mix .300 BLK and 5.56 magazines. One wrong round can destroy your rifle and injure you. Color-code your gear. Store calibers separately. Practice safe range protocols every single time.
