AR-15 Optics Mounting Complete Guide: Heights, Picatinny, M-LOK, QD vs Fixed
A $1,000 optic mounted incorrectly will perform worse than a $200 optic mounted right. This guide covers everything: optic heights, rail standards, mount types, torque values, and the common mistakes that cost shooters accuracy and money.
AR-15 Optic Height Chart
| Height | Inches | Use Case |
|---|---|---|
| Absolute Co-witness | 1.41" optical center | Iron sights perfectly align with red dot |
| Lower 1/3 Co-witness | 1.54"-1.57" | Most popular - irons sit in lower 1/3 of optic |
| 2.26" (Tall) | 2.26" | Used with helmets, eye pro, modern position |
Picatinny vs M-LOK vs KeyMod
Picatinny (MIL-STD-1913) is the universal mounting rail standard for optics, lasers, and lights on the TOP of the receiver. Every modern AR-15 has a Picatinny rail on the upper receiver.
M-LOK is the modular mounting standard for the SIDES and BOTTOM of the handguard. Magpul-designed, now industry-standard.
KeyMod is the legacy competitor to M-LOK - largely obsolete in 2026. Most new handguards are M-LOK.
QD vs Fixed Mounts
Quick Detach (QD): Lever-actuated mounts let you remove and re-attach the optic in seconds while maintaining zero (within 1-2 MOA). Critical for travel, swapping optics, or rifle disassembly. Brands: ADM, Larue Tactical, Geissele, Reptilia.
Fixed: Bolt-on mounts using torx screws. Lighter, slightly more secure, less expensive. Best for set-it-and-forget-it builds. Brands: Aero Precision, UTG, Burris.
Torque Specs - Don't Guess
| Component | Torque (in-lbs) |
|---|---|
| Picatinny rail mount screws | 35-65 in-lbs |
| Scope ring screws (1" tube) | 15-18 in-lbs |
| Scope ring screws (30mm tube) | 15-22 in-lbs |

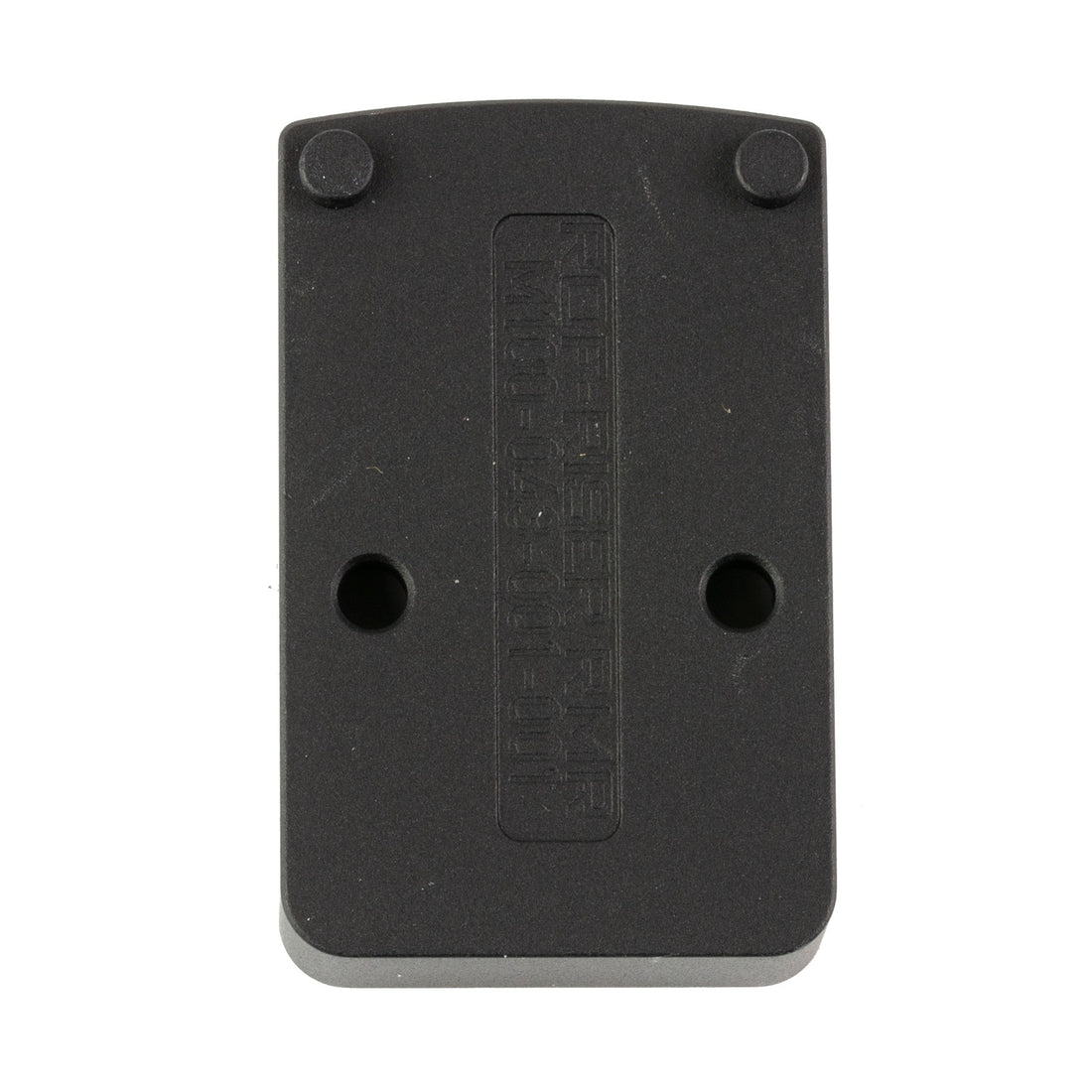

| Red dot footprint screws | 15 in-lbs (with thread-locker) |
| M-LOK accessory screws | 35 in-lbs |
Use blue Loctite 242 on Picatinny mount screws. Use NO Loctite on scope ring caps (they need to be removable). Use blue Loctite on red dot footprint screws.
Common Mounting Mistakes
- Wrong height for shooter: If you have to crane your neck, the optic is too low.
- Mounting too far forward or back: Eye relief matters. Red dots are forgiving, scopes are not.
- Overtightening: More torque doesn't mean more security. Strip the screws and you've ruined the mount.
- No thread-locker on permanent mounts: Recoil WILL loosen unlocked screws over time.
- Mixing brands: A Larue mount on a no-name receiver may not return to zero.
Frequently Asked Questions
What height mount should I use for an Aimpoint or Holosun?
For most users on an AR-15: 1.54" or 1.57" lower 1/3 co-witness. This is the most popular and accommodates most shooting positions. The 2.26" tall mount is becoming popular for those who shoot with eye protection and a helmet.
Is M-LOK better than KeyMod?
Yes - M-LOK is the industry standard in 2026. Better retention, simpler attachment, more accessory support. KeyMod is being phased out.
Will my Picatinny optic mount fit a Weaver rail?
Sometimes. Picatinny mounts will usually fit Weaver rails. Weaver mounts may NOT fit Picatinny rails properly. Use Picatinny mounts when in doubt.
Do I really need a torque wrench?
For a quality build, yes. A Fix It Sticks or Wheeler FAT torque wrench is $40-80 and will outlast your rifles. Eyeballing torque is the #1 cause of optics won't hold zero complaints.
