Wider Vision. Cleaner Reality.

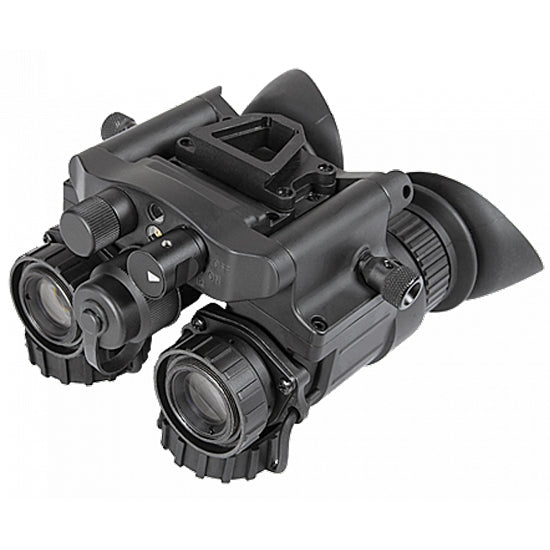

The AGM NVG-50 3AW1 is designed for the professional who refuses to be hindered by "tunnel vision." Most professional night vision units are limited to a 40° field of view; the NVG-50 shatters that limit with a 51° wide-angle optical system. This increased perspective allows you to scan larger areas with less head movement, providing a critical advantage in high-speed navigation or tactical entry.
As a 3AW1 model, this unit is equipped with highest-grade Gen 3 Auto-Gated "White Phosphor Level 1" image intensifier tubes. "Level 1" denotes a virtually spot-free image (Zone 1 cleanliness), while the P-45 white phosphor screen provides a natural black-and-white image that is significantly easier on the eyes during long missions than traditional green. With Manual Gain Control, you can dial back the brightness in urban environments to preserve detail or increase it in total wilderness to see every shadow.
Key Features
-
51° Extra-Wide Field of View: Provides significantly more peripheral vision than standard systems for superior situational awareness.
-
Gen 3 White Phosphor (Level 1): Military-grade tubes with 64-72 lp/mm resolution and a clean, high-contrast sight picture.
-
True Stereoscopic Vision: Dual-channel design provides the depth perception required for driving, operating machinery, or navigating rough terrain.
-
Manual Gain Control: Allows the operator to manually adjust the tube brightness to suit changing ambient light conditions.
-
Redundant Dual-Tube Design: Independent channels ensure that if one tube or battery fails, the other remains fully functional.
-
Auto-Off Flip-Up Feature: When used with a compatible helmet mount, the unit automatically powers down when flipped up to prevent light splash.
-
Universal Power Compatibility: Runs for up to 20 hours on a single AA battery or CR123A lithium battery.
-
IP67 Waterproof Rating: Rugged composite housing designed to withstand total submersion and extreme temperatures.
Technical Specifications
| Feature |
Details |
| IIT Generation |
Gen 3 Auto-Gated (Level 1) |
| Phosphor Color |
P-45 White Phosphor |
| Resolution |
64 - 72 lp/mm |
| Field of View (FOV) |
51° |
| Eye Relief |
17 mm |
| Focus Range |
0.25 m to Infinity |
| Weight |
1.35 lbs (615g) |
| Battery Life |
20 hrs (Up to 80 hrs with optional pack) |
- SKU: AGM 14NV5123484111
- UPC: 810027774033
