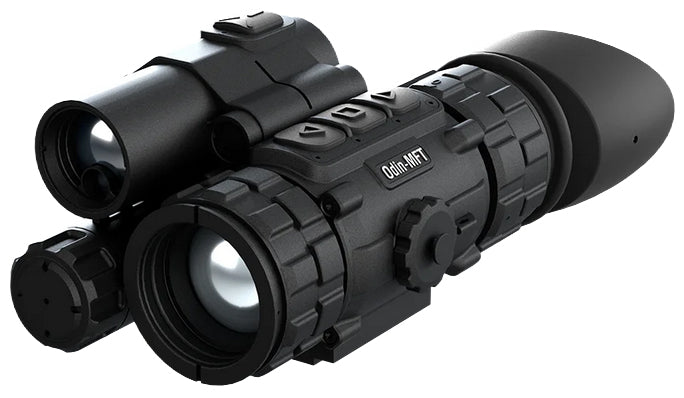

At the heart of the Odin 6 MFT is ATN's most advanced thermal engine to date a proprietary 6th Generation core built around a 12um VOx uncooled focal plane array with a 15mK NETD rating. Available in 320�240 and 640�480 sensor resolutions with a fast 50Hz refresh rate this next-gen system delivers razor-sharp contrast smooth thermal imaging and rapid heat detection across a wide range of environments. Whether you're tracking game scanning your land or navigating through smoke and darkness the Odin 6 MFT reveals what others overlook so you can act with clarity and confidence. - Modes of Operation Clip-on Weapon Sight Helmet Monocular Handheld Monocular - Detector Type 12um VOx Uncooled Focal Plane Array - Sensor Resolution 640�480 - Refresh Rate 50 Hz - Thermal Sensitivity (NETD) 15mK - SharpIR� Yes - Non-Uniformity Correction (NUC) Auto / Manual - Lens System 25 mm (Ge); F/1.0 - Field of View (HxV) 17.5� x 13.2� - Focus Mechanism Manual Focus Controlled by Lens Adjustment - Magnification 1-8x - Digital Zoom 1x 2x 4x 8x - Detection Range 1700 m - LRF Range 1000 m - LRF Accuracy �1 m - LRF Laser Specs 905 nm Class 1 (Eye Safe) - Display Resolution 0.37 OLED 1280�1024 HD Resolution - Picture-in-Picture (PIP) Yes - Reticle Types Ballistic reticle optimized for 5.56�45mm and 7.62�51mm; user-defined reticles supported - Reticle Styles 7 Styles - Color Palettes Multiple - Eye Relief Unlimited - Diopter Range -3 to +3D - NV Retention Mode Special mode for retaining natural night vision capability - Customizable User Interface Yes - Ballistic Calculator Yes - Manual Range Finder Automatic - Ballistic Profiles 9 Customizable Profiles - Video / Audio Recording Yes - Media Output USB Type-C (Data Transfer Power Supply) - Internal Storage Capacity 64 GB - Recoil Activated Video (RAV) Yes - Geomagnetic + Gyroscope Yes - Hot Point Tracking Yes - Standby / Sleep Mode Yes (includes Shake-to-Wake function) - Startup Time <5 seconds - Battery Type 1x 18650 or 1x CR123 or External USB Type-C (5V DC) - Battery Life ~8 hrs (18650) ~1 hr (CR123) - Supports External Power Supply Yes 5 VDC/2A USB Type-C interface - Material Magnesium Alloy - Mounting Wilcox NVG Shoe Interfaces / Picatinny (MIL-STD-1913) Rail Mount - Button Configuration 5 functional buttons including power - Weight 400g / 0.88 lbs (without battery or eyecup) - Dimensions (L x W x H) 100�75�60 mm (3.94 � 2.95 � 2.36 in) - Max Recoil Rating 4500 Joules / 800g acceleration over 0.3 ms - Working Temperature -46�C to +49�C (-51�F to +120�F) - Waterproof / IP Rating IP67
- SKU: ATN TIMFOD6625LRF
- UPC: 658175877653
