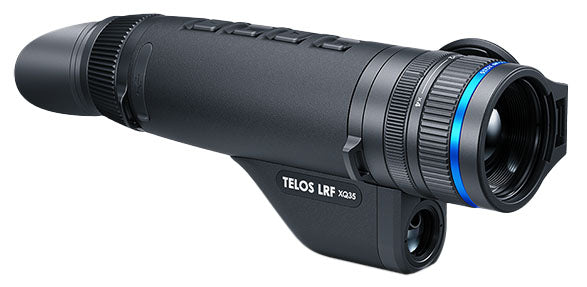

The Pulsar Telos LRF XQ35 is a handheld thermal monocular with a 384x288 sensor (<25 mK NETD), 3-12x magnification, and a built-in laser rangefinder accurate to 1 m out to 1000 m. Designed for scanning and spotting in total darkness, it records photo and video to 64 GB of internal memory and streams via Wi-Fi to the Stream Vision 2 app.
Main - Sensor 384x288 pix. @ 17 um (NETD <25 mK) - Objective lens F35 / 1.0 - Magnification x 3-12 (x4 zoom) - Field of view (HxV) degrees / m@100m 10.7x8 / 18.7x14 - Detection range m 1300 - Sensor - Type uncooled - Resolution pixels 384x288 - Pixel pitch um 17 - NETD mK <25 - Frame rate Hz 50 - Optics - Objective lens F35 / 1.0 - Magnification x 3-12 (x4 zoom) - Field of view (HxV) degrees / m @ 100 m 10.7x8 / 18.7x14 - Eye relief mm 14 - Display - Type AMOLED - Resolution pixels 1024x768 - Laser Rangefinder - Safety class for laser equipment according to IEC 60825-1:2014 1 - Wavelength nm 905 - Max. measuring range m 1000 - Measurement accuracy m 1 - Video Recorder - Video / photo resolution pixel 1024x768 - Video / photo format .mp4 / .jpg - Built-in memory GB 64 - Wi-Fi - Wireless Protocol Wi-Fi - Wireless Standard IEEE 802.11 b/g/n/ac (WPA) - Frequency GHz 2.4 / 5 - Environmental Characteristics - Degree of protection IP code (IEC60529) IPX7 (waterproof) - Operating temperature range C -25-+40 - Connections and Compatibilities - Mount type 1/4 - Supported Application Stream Vision 2 - Power Supply - Output voltage V 3.0-4.2 - Battery type LPS 7i Li-Ion Battery Pack - Capacity mAh 6400 - Operating time on battery pack (at t=22C) h * 8.5 - External power supply V 5V 9V (USB Type-C Power Delivery) - Weight & Size - Body material rubber armored reinforced plastic - Dimensions mm 224x66x87 - Weight kg 0.48 (w/o battery) / 0.63 (with the LPS7i battery)
- SKU: PULSAR PL77512
- UPC: 810119016393
